Phaser AE

Procedural models

Free packv3.0.0-53DLogic

A 3D model as data: a tree of primitives and smooth forms, each sized, posed and painted, with named clips that move them. Nothing is loaded from a file, so a model is something you can write by hand, generate, edit in a tool and read in a diff.

This is a Free pack. Every phaser.io account can use it in their games.

Released October 14, 2026 · updated October 19, 2026

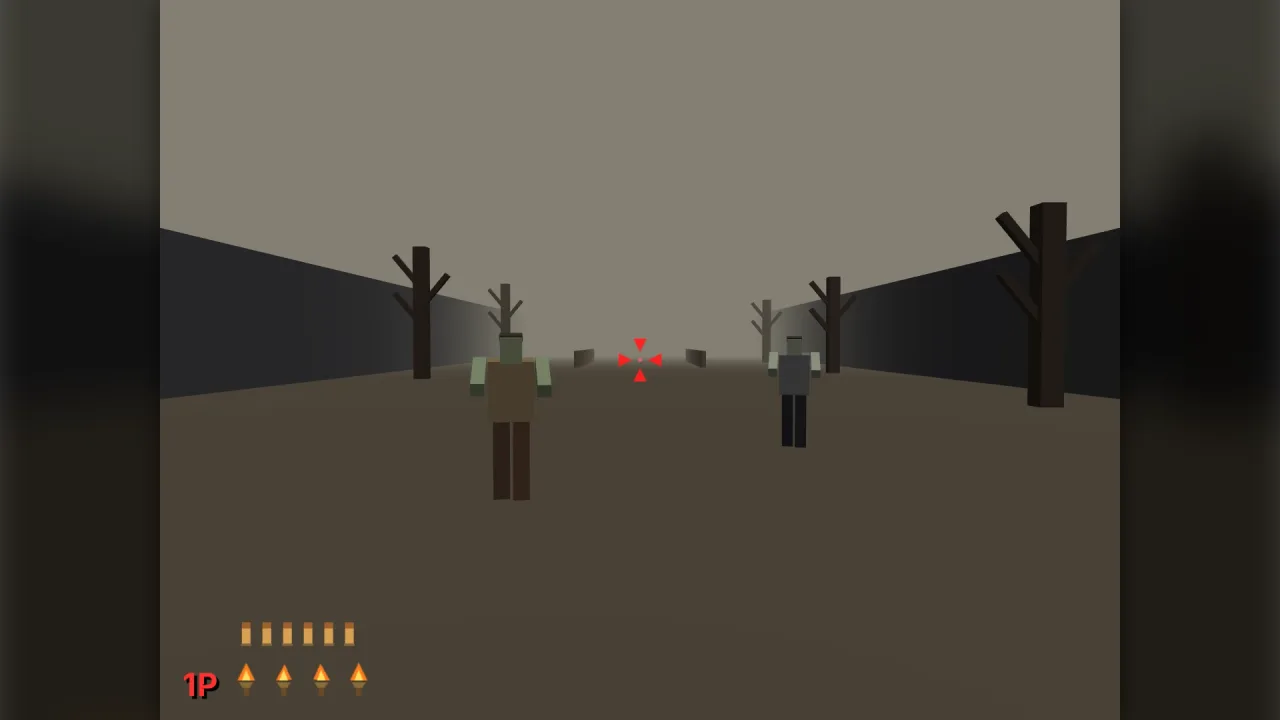

Procedural models: a screenshot of its demo
A note about these graphics

Expansion packs don't come with graphics. This screenshot is one way of drawing what the pack does, made for its demo: none of the sprites, tiles or backgrounds in it are in the pack.

That's by design. A pack is a game's logic, mechanics and effects, and it works with whatever art you give it. Some packs draw effects, backdrops or 3D scenes of their own, but none carries a game's sprites.

So the look is yours. Make the art on phaser.io, bring your own, or let your agent draw it in code: the same pack can look like anything.

What it does

A ModelSpec is a JSON object of parts, materials and clips. Each part names a shape, a parent, a pivot position and rotation in that parent's frame, the size of the box it fills in world units, and a material. An offset moves the mesh from its pivot, so a leg swings from the hip, and mirror builds a twin across x, children and all. game.models.define(name, spec) names it, and game.spawn({ model: name }) builds it on the spawned object, which becomes its root: move it, tag it, destroy it, and root.play('walk') plays a clip.

The built model is ordinary objects, one per part, each riding its parent. You can attach a sword to parts['hand-r'], read a wheel's world position, recolour one mesh, and under collision-3d the model collides as the box its parts fill at rest. Clips are tracks of keys per part: moves and turns as changes from the rest pose, and scales as multipliers, so editing the rest pose never breaks an animation. pose(clip, time) holds one moment, for a scrubber or a thumbnail.

Smooth forms take models past blocks. A part can be a lathe, an extrusion, a tube, a sweep along a path (a banana, a candy cane, a pretzel), a hollow vessel with its drink filled to a level, a leaf, a scatter of copies over its parent (seeds, kernels, a bunch of grapes), a coat over its parent (icing, glaze, chocolate) with drips, or a numbered die. Parts can be sliced by up to three planes, and child parts marked as tools carve holes out of their parent, each cut face in its own material. Materials carry patterns painted by the renderer, so a rind is striped and a donut sprinkled without a part per stripe, and opacity gives see-through glass, drinks and ice.

Features

  • Models as JSON — parts, materials and clips, tidied into a valid spec by game.models.clean, which never throws.
  • A part hierarchy — pivots, offsets, mirrored twins, and handles for every part's pivot and mesh.
  • Animation clips — per-part move, turn and scale tracks with easing, looping or one-shot, at any speed.
  • Smooth forms — lathe, extrude, tube, sweep, vessel, leaf, scatter, coat and die, with deformers for bend, taper, twist, lobes, noise and squash.
  • Slices and cuts — up to three cutting planes, and tool parts carved out of their parent.
  • Fourteen patterns — stripes, bands, swirl, rings, segments, checker, grid, dots, speckle, sprinkles, spots and grain, plus pips and numbers for dice faces.
  • See-through materials — opacity from 0.05 to 1 for glass, drinks and ice.
  • Surface checks — modelContacts finds floating parts and parts poking through a vessel's side.
  • Ordinary objects — models collide, cull, pick and attach like anything else, and batch across copies.

Good for

  • Low-poly and toy-like 3D games with characters, vehicles and props built from primitives.
  • Endless runners and crossing games with simple chunky characters and obstacles.
  • Food, cooking and café games — fruit that slices, cakes with icing, glasses with drinks, cheese with holes.
  • Board and dice games, with real numbered dice and pieces.
  • Blockouts that can ship, where the placeholder art is good enough to keep.
  • Generated content, where code or a tool writes model specs instead of an artist exporting files.

Make it yours

Everything is in the spec: the parts and their shapes, sizes, poses and materials; the forms and their settings; the patterns, opacity, roughness, metalness and glow of each material; and the clips. A spec is plain data, so one from an editor or a tool drops straight in. One spec serves many copies, scaled as a whole.

Two different uses: a walking robot built from rounded boxes and capsules, with mirrored arms and legs, a walk loop and a jump one-shot, a laser attached to its hand; and a smoothie stand where a lathed glass holds a see-through drink, a sliced kiwi sits on the rim and a striped straw is swept along a bent path.

A quick look

Build a model, play a clip and attach a sword to its hand:

import { hero } from './models/hero.js';          // a ModelSpec
const h = game.models.build(hero, { x: 0, y: 0, z: 0 });
h.play('walk');
game.attach.to(sword, h.parts['hand-r']!, { y: -0.3 });

game.models.define('hero', hero);
game.spawn({ id: 'hero-2', model: 'hero', x: 4, y: 0, z: 0 });

Works with

  • core-3d — includes this pack as game.models.
  • geometry-3d — the primitives and smooth forms every part is built from.
  • render-3d — draws the materials, patterns and see-through parts.
  • attach-3d and collision-3d — attach things to parts, and collide models as boxes.
  • model-files-3d — loads .glb and .obj files made by an artist, side by side with these.
  • art-3d — lighter scene dressing with no hierarchy.

Good to know

  • Parts are rigid: there is no skinning, and a joint is where two parts overlap. For a skinned character, load a file with model-files-3d.
  • One clip plays at a time per model, with no blending, and a one-shot clip holds its last pose with no event.
  • Specs are clamped: 160 parts, 32 materials, 24 clips, 96 tracks a clip, 64 keys a track and 200 world units a side. Past that it is a scene; build it from several models.
  • A model collides as its rest-pose box; clips move the parts, not the box.
  • See-through parts sort as whole pieces and cast no shadow.
