Phaser AE

Platform movers

Pro packv3.0.0-22DArcade

Moving surfaces for side-view arcade platform games: shuttles, lifts, looping elevators, switching conveyors, level swings, crumbling platforms and blinking steps. Add the set to a walker world and the player and enemies stand on, ride and are carried by all of them.

This is a Pro pack. Upgrade to Phaser Pro to use it in your games.See Phaser Pro →

Released October 14, 2026 · updated October 19, 2026

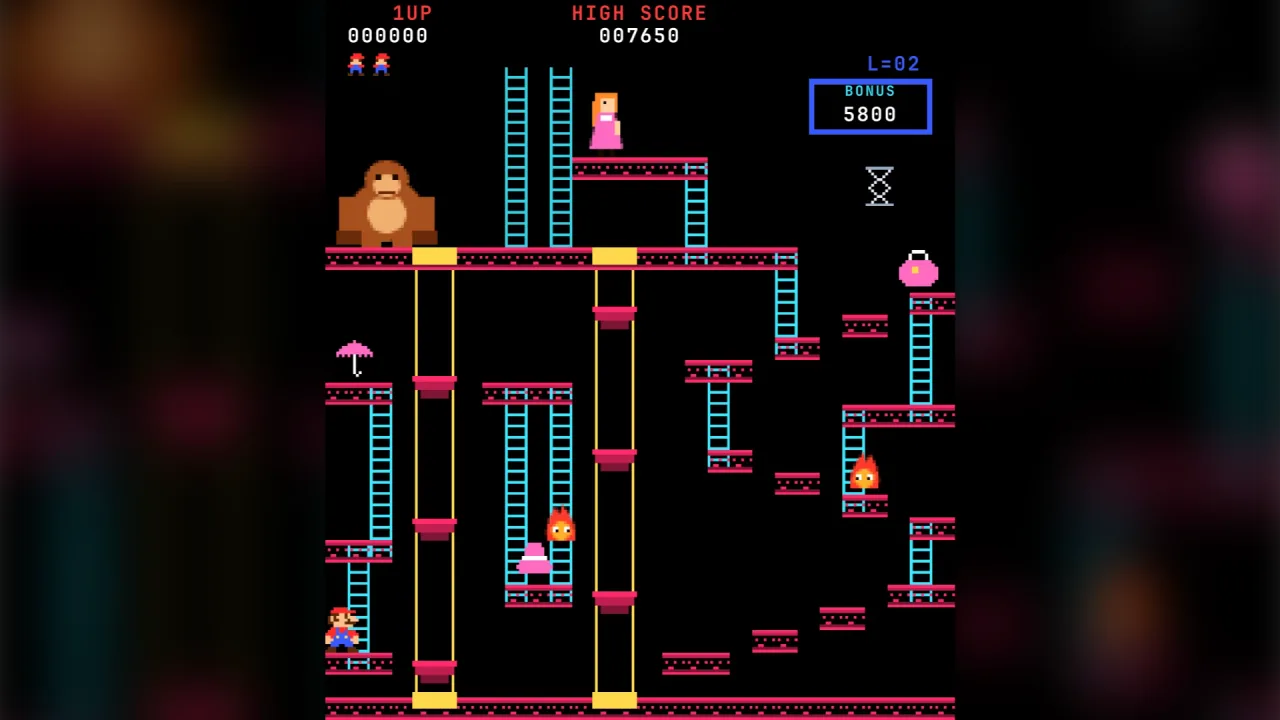

Platform movers: a screenshot of its demo
A note about these graphics

Expansion packs don't come with graphics. This screenshot is one way of drawing what the pack does, made for its demo: none of the sprites, tiles or backgrounds in it are in the pack.

That's by design. A pack is a game's logic, mechanics and effects, and it works with whatever art you give it. Some packs draw effects, backdrops or 3D scenes of their own, but none carries a game's sprites.

So the look is yours. Make the art on phaser.io, bring your own, or let your agent draw it in code: the same pack can look like anything.

The pack

platformMovers

function platformMovers(): Pack<{ platformMovers: typeof api }>

Install the renderer-independent platform movers API.

Helpers

createMovers

function createMovers(o: MoversOptions): Movers

Create a set of moving surfaces.

Types

BeltMover

interface BeltMover extends MoverCommon

A conveyor belt that carries riders and may switch direction on a timetable (Donkey Kong 50 m).

  • type: "belt" — Belt.
  • x: number — Centre x.
  • y: number — Standing line.
  • speed: number — Belt speed, units per second, positive to the right.
  • switchEvery?: number | number[] | null — Seconds between direction switches: one number, a cycle of durations, or null never. Default null.

CrumbleMover

interface CrumbleMover extends MoverCommon

A platform that shakes once stood on, then falls or vanishes, optionally respawning.

  • type: "crumble" — Crumbling platform.
  • x: number — Centre x.
  • y: number — Standing line.
  • delay?: number — Seconds of shaking after the first rider before it gives way. Default 0.5.
  • fall?: "drop" | "vanish" — 'drop' falls away under gravity (drawn), 'vanish' disappears. Either way riders fall. Default 'drop'.
  • gravity?: number — Gravity for 'drop', units/s². Default 500.
  • respawn?: number | null — Seconds until it reappears, or null never. Default 3.

ElevatorMover

interface ElevatorMover extends MoverCommon

A column of platforms moving continuously up or down, each re-entering at the far end (Donkey Kong 75 m).

  • type: "elevator" — Elevator.
  • x: number — Centre x of the column.
  • top: number — Highest standing line.
  • bottom: number — Lowest standing line.
  • speed: number — Speed, units per second.
  • count?: number — Platforms in the column. Default 3.
  • direction?: "up" | "down" — 'up' or 'down'. Default 'up'.

MoverCommon

interface MoverCommon

Fields every mover shares. Positions are the surface's TOP-CENTRE: the middle of its standing line.

  • id: string — Unique id; surfaces are id (or id-0, id-1 ... for elevators).
  • width: number — Surface width, world units.
  • thickness?: number — Thickness below the standing line (drawn; blocks heads when solid). Default 4.
  • solid?: boolean — Also blocks rising heads (a bump) instead of being jump-through. Default false.
  • traction?: number — Rider traction (1 normal, lower is slippery). Default 1.
  • belt?: number — Conveyor speed carried by the surface itself (for belts use type 'belt'). Default 0.
  • hazard?: boolean — Touching it is a hazard. Default false.
  • bounce?: number — Launch speed for bodies that land on it (a spring pad). Default 0.
  • active?: boolean — Starts active. Default true.
  • kind?: string — Free classification for renderers ('lift', 'cart', 'girder'); defaults to the type.

MoverDef

type MoverDef = PathMover | ElevatorMover | BeltMover | SwingMover | CrumbleMover | TimedMover | StaticMover

Any mover definition.

MoverEvent

type MoverEvent = | { kind: "crumble-start"; id: string } | { kind: "crumble-fall"; id: string } | { kind: "respawn"; id: string } | { kind: "belt-reversed"; id: string; speed: number } | { kind: "elevator-wrap"; id: string; surface: string } | { kind: "arrived"; id: string; point: number } | { kind: "appear"; id: string } | { kind: "disappear"; id: string } | { kind: "triggered"; id: string }

Events from drain().

MoverPiece

interface MoverPiece

Render state of one surface.

  • id: string — Surface id.
  • mover: string — Mover id.
  • type: MoverDef["type"] — Mover type.
  • kind: string — Classification.
  • x: number — Top-centre x.
  • y: number — Standing line y.
  • width: number — Width.
  • thickness: number — Thickness.
  • visible: boolean — Visible (crumbles keep drawing while they fall).
  • active: boolean — Standable this step.
  • warn: number — 0..1 warning level (shaking crumbler, timed platform about to vanish).
  • angle: number — Rope angle from vertical (swing), radians.
  • pivot: MoverPoint | null — Pivot (swing) or null.
  • beltOffset: number — Belt travel so far (for animating treads), units.
  • belt: number — Current belt speed or 0.
  • snapped: boolean — Moved discontinuously this step: renderers should snap.

MoverPoint

interface MoverPoint

A point in world units.

  • x: number — World x.
  • y: number — World y.

Movers

interface Movers extends SurfaceProvider

A set of moving surfaces: a SurfaceProvider plus controls and render state.

  • step(dt: number, riders?: RiderMap): void — Advance one step with the riders from the walker world (world.riders()); a world calls it for you.
  • surfaces(): readonly Surface[] — The current surfaces.
  • pieces(): MoverPiece[] — Render state of every surface.
  • ids(): string[] — Mover ids.
  • reverse(id: string): void — Reverse a path, belt or elevator.
  • setSpeed(id: string, speed: number): void — Set a path, belt or elevator speed (units per second; negative belt speed runs left).
  • setActive(id: string, on: boolean): void — Enable or disable a mover's surfaces (disabled surfaces cannot be stood on).
  • trigger(id: string): void — Start a rider-triggered path or a crumble now.
  • reset(id: string): void — Put a mover back to its initial state.
  • add(def: MoverDef): void — Add a mover at runtime.
  • remove(id: string): void — Remove a mover.
  • drain(): MoverEvent[] — Events since the last drain.
  • snapshot(): MoversSnapshot — Serialisable state.
  • restore(s: MoversSnapshot): void — Restore a snapshot of the same definitions.

MoversOptions

interface MoversOptions

Options for createMovers.

  • id?: string — Provider id. Default 'movers'.
  • movers: MoverDef[] — Mover definitions.

MoversSnapshot

interface MoversSnapshot

Serialisable state.

  • movers: MoverState[] — Mover states, in definition order.
  • surfaces: Surface[] — Surfaces as of the last step.
  • events: MoverEvent[] — Undrained events.

PathMover

interface PathMover extends MoverCommon

Moves along authored points.

  • type: "path" — Path platform.
  • points: MoverPoint[] — Waypoints for the top-centre, at least two.
  • speed: number — Speed along the path, units per second.
  • mode?: "ping-pong" | "loop" | "once" — 'ping-pong' back and forth, 'loop' round a closed path, 'once' to the end and stop. Default 'ping-pong'.
  • dwell?: number — Seconds to wait at each waypoint. Default 0.
  • trigger?: "always" | "rider" — 'always' moves from the start; 'rider' waits until something stands on it. Default 'always'.
  • phase?: number — Start this far along the path, 0..1 of its length. Default 0.

StaticMover

interface StaticMover extends MoverCommon

A surface that does not move (bridges, ledges added at runtime).

  • type: "static" — Static surface.
  • x: number — Centre x.
  • y: number — Standing line.

SwingMover

interface SwingMover extends MoverCommon

A level platform on a pendulum.

  • type: "swing" — Swinging platform.
  • pivot: MoverPoint — Pivot point.
  • length: number — Rope length from pivot to standing line.
  • amplitude: number — Peak angle from vertical, radians (positive swings right first).
  • period: number — Seconds per full swing.
  • phase?: number — Start this far through the swing, 0..1. Default 0.

TimedMover

interface TimedMover extends MoverCommon

A platform that appears and disappears on a timetable.

  • type: "timed" — Timed platform.
  • x: number — Centre x.
  • y: number — Standing line.
  • on: number — Seconds present.
  • off: number — Seconds absent.
  • phase?: number — Seconds into the cycle at the start. Default 0.
  • warn?: number — Seconds before vanishing during which renderers should warn (flash). Default 0.5.
