Phaser AE

Paths and walkers

Free packv3.0.0-32DLogic

Anything that travels a route: an enemy on a shooter's waveform, a platform on a loop, a boss on a spiral, a camera on a spline, a projectile on an arc. One call moves an object along a curve at an even speed, turning to face where it is going if you like.

This is a Free pack. Every phaser.io account can use it in their games.

Released October 14, 2026 · updated October 19, 2026

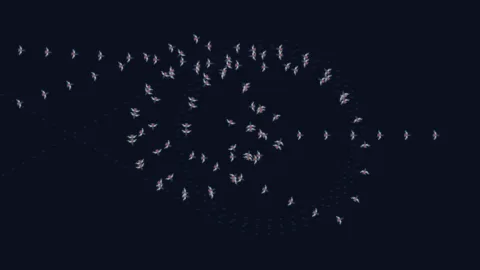

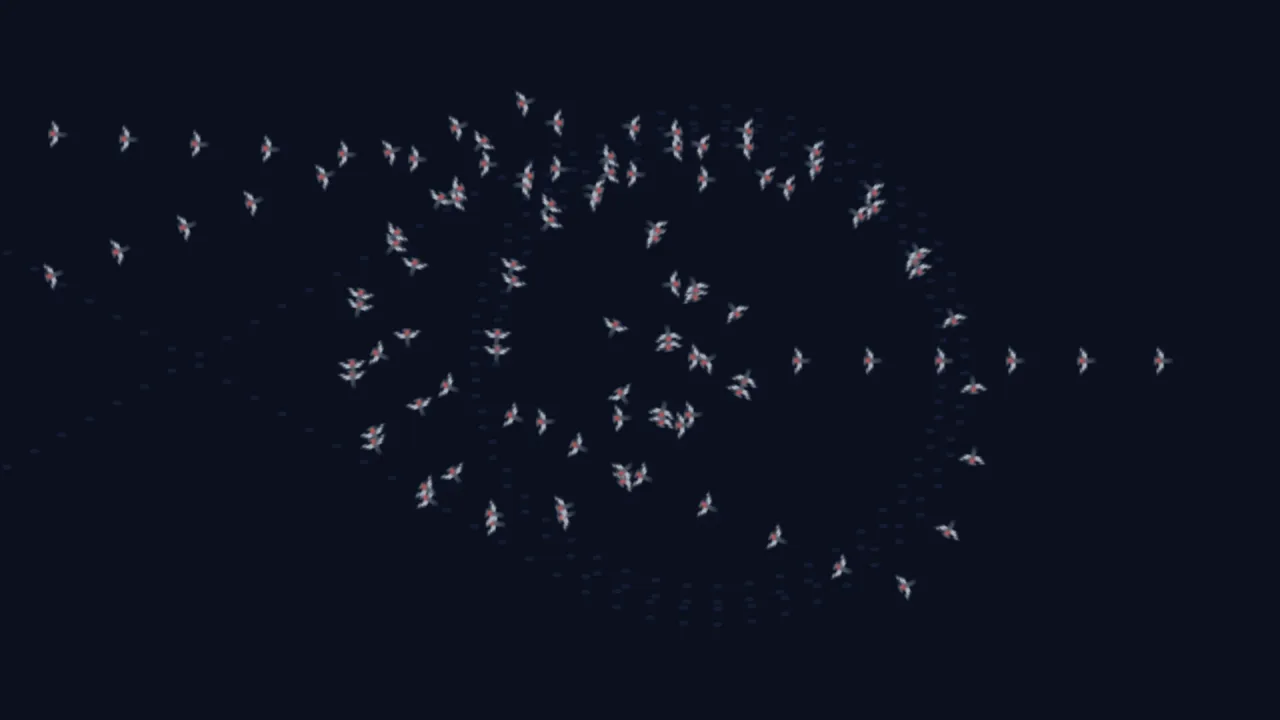

Paths and walkers: a screenshot of its demo
A note about these graphics

Expansion packs don't come with graphics. This screenshot is one way of drawing what the pack does, made for its demo: none of the sprites, tiles or backgrounds in it are in the pack.

That's by design. A pack is a game's logic, mechanics and effects, and it works with whatever art you give it. Some packs draw effects, backdrops or 3D scenes of their own, but none carries a game's sprites.

So the look is yours. Make the art on phaser.io, bring your own, or let your agent draw it in code: the same pack can look like anything.

What it does

A walker owns a position on a curve from the geometry pack: a line, a quadratic or cubic bezier, a spline, an arc, a spiral, a sine, zigzag or square wave, a path of segments laid end to end, or the outline of any shape. The curve is baked by arc length when the walker is made, so the object moves at the same speed everywhere, where moving by a bezier's own parameter would race along the straights and crawl round the bends.

game.path.follow(h, shape, opts) drives an object along the curve every step, before physics, and returns the walker. It belongs to the scene, so it is cleaned up when the scene ends, and a second follow on the same object replaces the first. game.path.walker(shape, opts) gives a headless walker instead, which you update yourself and read x, y and angle from, for a camera, a spawn point or anything that is not an object.

At the end a walker can stop, wrap to the start or turn back. An ease shapes each pass, so a platform can slow into each end. at starts it part-way along, so a line of enemies can share one curve and be spaced along it, and relative lays the curve out from where the object is standing. path.lap and path.end signals tell the game when a pass completes.

Features

  • Any geometry curve — lines, beziers, splines, arcs, spirals, waves, paths and shape outlines.
  • Even speed — curves baked by arc length, with a sample count you can raise for long or wiggly routes.
  • Speed or duration — units per second, or seconds for the whole curve.
  • Loop modes — stop, loop or yoyo, with laps counted and the return leg reported.
  • Easing — any named easing or your own function over each pass.
  • Start offsets and relative curves — at for spacing, relative for routes laid from the object.
  • Face the direction of travel — align, with an offset in degrees for art that points another way.
  • Control — pause, set t to jump, change speed live, reset, and stop an object.
  • Signals — path.lap and path.end for followed objects.

Good for

  • Shoot-'em-ups, with enemy waves that swoop in on curves, in the style of Galaga, or weave along a sine wave.
  • Platformers, with moving platforms that ease back and forth or circle a loop.
  • Boss fights, with a boss spiralling out from the centre of the arena.
  • Camera rides and attract modes, with a headless walker on a spline.
  • Tower defence, with creeps following a fixed winding road.
  • Projectiles on arcs, such as lobbed bombs on a set curve.

Make it yours

Each walker takes its own speed or duration, loop mode, ease, start point, relative mode, alignment and offset, sample count and whether it starts paused. The curve is plain data, so a wave of enemies can share one shape with different at values, and a level can store its routes as shapes.

Two different uses: a shooter where twelve enemies follow one cubic bezier into the screen with align on, each started a little further along; and a platformer where a lift rides a straight line for two seconds each way with loop: 'yoyo' and easeInOutSine, slowing at each floor.

A quick look

An enemy on a wave, a platform that yoyos, and a free walker on a bezier:

game.path.follow(enemy, { kind: 'wave', x1: 700, y1: 80, x2: -60, y2: 80, amplitude: 40, cycles: 3 }, { speed: 160, align: true });
game.path.follow(platform, { kind: 'line', x1: 100, y1: 200, x2: 300, y2: 200 }, { duration: 2, loop: 'yoyo', ease: 'easeInOutSine' });
game.path.follow(boss, { kind: 'spiral', x: 0, y: 0, r1: 0, r2: 120, turns: 3 }, { speed: 90, relative: true });
const free = game.path.walker({ kind: 'cubic', x1: 0, y1: 0, c1x: 50, c1y: -80, c2x: 150, c2y: -80, x2: 200, y2: 0 }, { speed: 100 });
free.update(dt); free.x; free.y; free.angle;

Works with

  • geometry — the curves and shapes every route is made from.
  • path-notation — routes authored as chained segments in data, such as a wave plan.
  • path-3d — 3D curves with frames, for a coaster or a camera rail.
  • tween — for point-to-point moves that are not a route.
  • particles-2d — to emit along the same shape the route follows.

Good to know

  • With an ease, speed is the average over a pass; duration is exact.
  • follow sets the object's position, and its rotation with align, every step, so physics on the same object will fight it. Use one or the other.
  • Baking samples the curve once, 128 points by default: raise samples for a long or wiggly route.
  • It is 2D only; 3D routes are path-3d.
