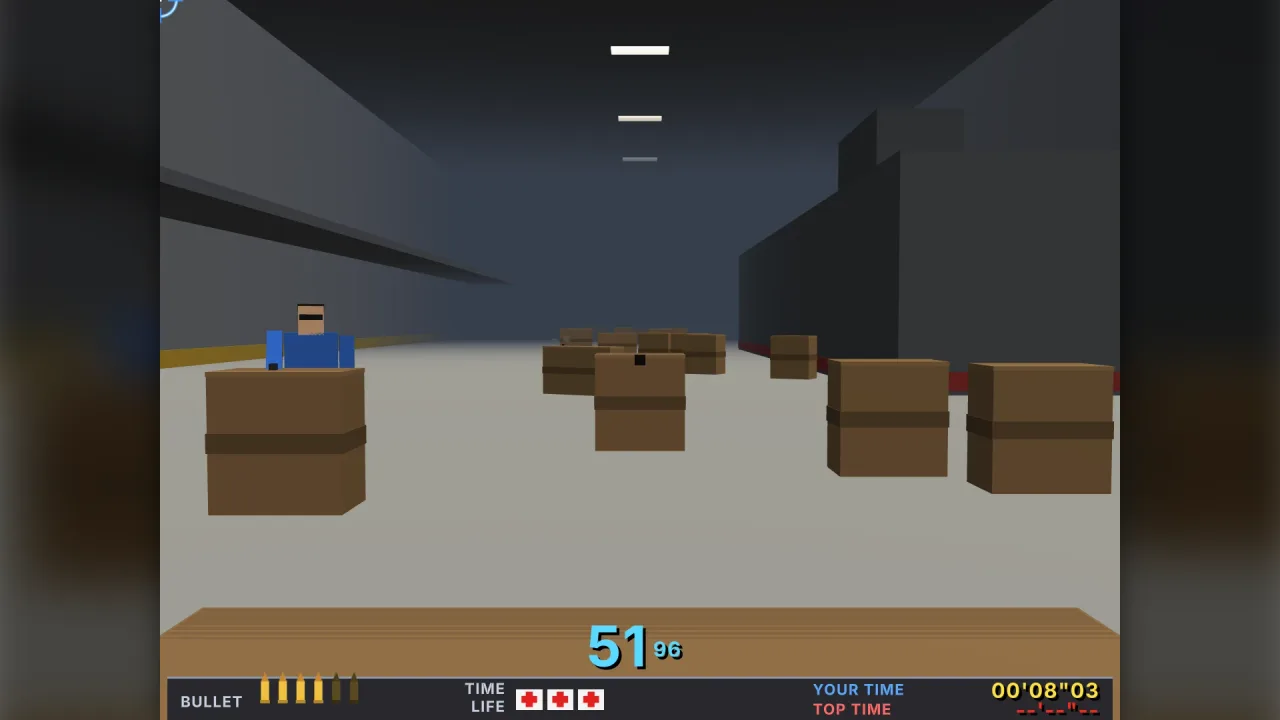

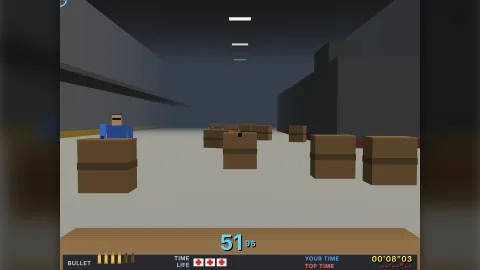

Cover shooter

The pack

coverShooter

function coverShooter(): Pack<{ coverShooter: typeof api }>

Install the cover shooter API.

Helpers

actor

function actor(kind: string, at: Partial<StopPoint>, o: Partial<Omit<ActorSpec, "kind" | "at">> = {}): ActorSpec

An actor spec.

areaBuilder

function areaBuilder(id: string, name: string, opts: Partial<Omit<AreaDef, "id" | "name" | "sections" | "scenery">> = {}): AreaBuilder

Start authoring an area.

conditionHolds

function conditionHolds(c: Condition, flags: Readonly<Record<string, boolean | number | string>>): boolean

Does a condition hold for these flags.

COVER_STEP

const COVER_STEP: number

The default fixed step: 1/60 s.

coverDifficulty

function coverDifficulty(name: DifficultyName): CoverDifficulty

Built-in difficulty presets. Arcade is the original tables.

createCoverShooter

function createCoverShooter(def: CoverDef): CoverShooter

Build a session.

fmtTime

function fmtTime(seconds: number): string

Format seconds as the arcade's 00'00"00.

groundAt

function groundAt(boxes: readonly SceneryBox[], x: number, z: number, fallback: number): number

The highest walkable top under (x, z), or fallback when there is none.

houseOfTheDeadChapters

function houseOfTheDeadChapters(): StageDef[]

The four chapters of the arcade game.

houseOfTheDeadKinds

function houseOfTheDeadKinds(): ActorKind[]

The House of the Dead actor kinds.

houseOfTheDeadPreset

function houseOfTheDeadPreset(o: HouseOfTheDeadOptions = {}): CoverDef

The House of the Dead (Sega 1996).

houseOfTheDeadProjectiles

function houseOfTheDeadProjectiles(): CoverProjectile[]

Projectiles: axes, knives, barrels, wrecking balls, darts, web balls and fireballs; all can be shot down.

insideBox

function insideBox(b: SceneryBox, p: Vec3, margin = 0): boolean

Is a point inside a box.

isWalkable

const isWalkable = (b: SceneryBox): boolean=> …

Do actors stand on this box.

lineOfSight

function lineOfSight(boxes: readonly SceneryBox[], from: Vec3, to: Vec3): boolean

Can a point see another: no occluding box between them.

occludes

const occludes = (b: SceneryBox): boolean=> …

Does this box stop shots and block sight (walkable boxes never do: an actor stands on them).

overFootprint

function overFootprint(b: SceneryBox, x: number, z: number, margin = 0): boolean

Is a ground point (x, z) over a box's footprint (with a margin).

popUp

function popUp(o: { from?: "below" | "left" | "right" | "above" | "behind" | "none"; aim?: number; shots?: number; gap?: number; rest?: number; first?: number; dist?: number } = {}): ActorStep[]

Script: pop up from cover, aim, fire, duck and repeat (Time Crisis gunmen).

rayBox

function rayBox(b: SceneryBox, origin: Vec3, dir: Vec3, maxT = Infinity): { t: number; normal: Vec3 } | null

Where a ray enters a box: distance along the (unit) direction and the face normal, or null.

sceneryRay

function sceneryRay(boxes: readonly SceneryBox[], origin: Vec3, dir: Vec3, maxT = Infinity, filter: (b: SceneryBox) => boolean = () => true): { t: number; normal: Vec3; box: SceneryBox } | null

The nearest box a ray meets within maxT, among the boxes filter accepts.

SEE_THROUGH_MODELS

const SEE_THROUGH_MODELS: ReadonlySet<string>

Models that never stop a shot or block sight by default (lights, water surfaces, skirting).

shamble

function shamble(o: { stop?: number; windup?: number; rest?: number; first?: number; from?: "below" | "left" | "right" | "above" | "none" | "behind" } = {}): ActorStep[]

Script: lumber toward the camera and strike when close; repeat (zombies).

standAndFire

function standAndFire(o: { from?: "below" | "left" | "right" | "above" | "none"; aim?: number; shots?: number; gap?: number; rest?: number; first?: number } = {}): ActorStep[]

Script: step out and keep shooting from the open (no cover).

timeCrisisKinds

function timeCrisisKinds(): ActorKind[]

The Time Crisis actor kinds (accuracy from the GameSurge enemy guide; see the docs).

timeCrisisPreset

function timeCrisisPreset(o: TimeCrisisOptions = {}): CoverDef

Time Crisis (Namco 1995).

timeCrisisProjectiles

function timeCrisisProjectiles(): CoverProjectile[]

Projectiles: grenades, bazooka rockets and Sherudo's daggers.

timeCrisisStages

function timeCrisisStages(): StageDef[]

The three stages of the arcade game.

validateCover

function validateCover(def: CoverDef): void

Validate a definition; throws with a clear message.

WALK_MODELS

const WALK_MODELS: ReadonlySet<string>

Models actors stand on by default.

wave

function wave(actors: ActorSpec[], o: Partial<Omit<WaveDef, "actors">> = {}): WaveDef

A wave.

Types

ActorKind

interface ActorKind

A kind of actor: enemies, bosses, civilians, breakables, items and switches.

• id: string — Unique id.
• role?: Role | undefined — Rules role (default 'enemy').
• hp?: number | undefined — Hit points (default 1). Bosses: the session's hit counter.
• radius?: number | undefined — Sphere radius when there are no regions (default 40).
• regions?: CoverRegion[] | undefined — Hit regions in the actor's frame (x right, y up from its feet, z toward the camera).
• script?: ActorStep[] | undefined — The script it runs when a spawn gives none.
• speed?: number | undefined — Walking speed, units per second (default 150).
• accuracy?: number | number[] | undefined — Chance each hitscan shot hits (Time Crisis: red soldiers 0.9 for the first, blue 0.2–0.4). Default 0.3.
• points?: number | undefined — Points for a kill.
• headPoints?: number | undefined — Points for each hit on a part named 'head' (cumulative: House of the Dead headshots).
• stagger?: { time: number; knock?: number | undefined } | undefined — Hit reaction: seconds staggered (attack interrupted) and units knocked back.
• reel?: number | undefined — Bosses: seconds it reels after each damaging hit (unhittable, attack interrupted).
• timeBonus?: { max: number; decay: number } | undefined — Time Crisis orange soldiers: seconds added for a kill, max falling to 0 over decay seconds of its life.
• drop?: string | undefined — Breakables: the item kind it drops.
• reward?: { points?: number | undefined; lives?: number | undefined } | undefined — Items: what shooting it gives.
• rescue?: { time: number; points?: number | undefined; lives?: number | undefined } | undefined — Civilians: rescued if every attacker grabbing it dies within time seconds; reward on rescue.
• protect?: string | undefined — Civilians: the protected label light-gun reports (default 'civilian').
• sets?: string | undefined — A flag set when it is destroyed (switches also set shot:<name>; any named actor killed sets killed:<name>).
• boss?: { name?: string | undefined; phases: BossPhase[]; points?: number | undefined } | undefined — Bosses: phases, a name and points for the kill.
• flies?: boolean | undefined — It flies or hangs (helicopters, bats, items, wall switches): it may be placed above the ground. Everything else stands on the ground (spawn heights must be 0).
• blocks?: boolean | undefined — Holds the stop until it is gone (default true for enemies and bosses, false otherwise).
• look?: Look | undefined — Presentation hints.

ActorMode

type ActorMode = | "hidden" | "enter" | "idle" | "move" | "leap" | "aim" | "fire" | "throw" | "approach" | "windup" | "strike" | "stagger" | "reel" | "exit" | "rescued" | "flee"

What an actor is doing (for presenters' animation).

ActorSpec

interface ActorSpec

One actor in a wave.

• kind: string — Kind id.
• at: StopPoint — Its spot in the stop frame.
• delay?: number | undefined — Seconds after the wave fires (default 0).
• script?: ActorStep[] | undefined — A script instead of the kind's.
• name?: string | undefined — A name for rescues, flags and branches (rescued:<name>, lost:<name>, shot:<name>).
• grab?: string | undefined — Civilians it is attacking (names, comma-separated): their rescue fails if it is still alive when their time is up. A switch can hold civilians the same way (a cage).
• hp?: number | undefined — Hit points instead of the kind's.
• drop?: string | undefined — Item kind it drops when destroyed (overrides the kind's).

ActorState

interface ActorState

A live actor (plain data). Its rail-route target has the same id.

• id: string — Id (the rail target's).
• kind: string — Kind id.
• section: string — Section whose stop frame pos is in.
• name: string — Name from its spawn ('' when unnamed).
• pos: StopPoint — Position in the stop frame.
• home: StopPoint — Its authored spot.
• script: ActorStep[] — The script it runs (plain data).
• step: number — Current step index.
• t: number — Seconds into the current step.
• loops: Record<string, number> — Loop counters by step index.
• mode: ActorMode — What it is doing.
• modeTime: number — Seconds in the current mode.
• hidden: boolean — Out of sight behind cover: shots cannot hit it.
• motion: { from: StopPoint; to: StopPoint; time: number; arc: number } | null — Motion of the current step: start, end, duration, arc height.
• shots: { left: number; index: number; next: number } — Shots or throws left in the current step, and the index of the next for accuracy lists.
• stagger: number — Seconds of stagger or reel left.
• age: number — Seconds alive.
• grab: string — Civilian it is attacking ('' for none).
• hp: number — Hit points (bosses: the session's counter; others mirror the rail target).
• hpMax: number — Maximum hit points.
• phase: number — Boss phase index.
• drop: string — Item it drops.
• fired: number — Seconds since it last fired (presenters' muzzle flash).
• danger: boolean — The last shot it fired will hit unless the player takes cover (presenters' red flash).
• lost: string[] — Body parts shot off.
• done: boolean — Rescued, killed or gone: no longer acting.
• delay: number — Seconds before it appears (a wave member's delay); not drawn or hittable until then.
• lastPart: string — The part its last hit struck (a kill by a 'head' hit is a headshot).
• boss: boolean — A boss (the session counts its hit points and phases).
• pending: boolean — A boss phase's minions and banner wait for the camera to reach the phase's scene.

ActorStep

type ActorStep = /** Come out from cover: from an offset (behind a crate, dropping from the ceiling, round a corner) to the actor's spot (`at` moves the spot first). Unhittable for the first half. */ | { do: "enter"; from?: Side | undefined; time?: number | undefined; dist?: number | undefined; at?: Partial<StopPoint> | undefined } /** Go back into cover (the reverse of `enter`); unhittable from half way. */ | { do: "hide"; to?: Side | undefined; time?: number | undefined; dist?: number | undefined } /** Move to a point of the stop frame (missing fields keep the current value). */ | { do: "move"; to: Partial<StopPoint>; time: number } /** Move by an offset. */ | { do: "shift"; by: Partial<StopPoint>; time: number } /** Jump in an arc to a point (ninjas between pillars). */ | { do: "leap"; to: Partial<StopPoint>; time: number; height?: number | undefined } /** Do nothing for a while. */ | { do: "wait"; time: number } /** Raise the gun: the wind-up before `fire` (scaled by the difficulty's `windup`). */ | { do: "aim"; time: number } /** Fire hitscan shots at the player. Each shot hits with `accuracy` (the kind's by default; a list gives the first shots' chances, the last repeating). */ | { do: "fire"; shots?: number | undefined; gap?: number | undefined; accuracy?: number | number[] | undefined } /** Throw or launch projectiles (grenades, rockets, knives, axes, fireballs) that can be dodged in cover or shot down. `needs`: a part that must still be on (a barrel shot out of a zombie's hands is not thrown). */ | { do: "throw"; projectile: string; count?: number | undefined; gap?: number | undefined; accuracy?: number | undefined; from?: StopPoint | undefined; needs?: string | undefined } /** Close in to `reach` of the camera (at the kind's speed), wind up for `windup` seconds, then strike. */ | { do: "melee"; windup?: number | undefined; reach?: number | undefined; damage?: number | undefined } /** Walk toward the camera until within `stop` units. */ | { do: "approach"; stop: number; speed?: number | undefined } /** Leave the scene (`escape` marks it as got away). */ | { do: "exit"; to?: Side | "away" | undefined; time?: number | undefined; escape?: boolean | undefined } /** Jump to one of these steps, chosen at random (seeded): a boss's random attack variations. */ | { do: "branch"; to: number[] } /** Jump back to a step (default 0) up to `times` times (default for ever). */ | { do: "loop"; to?: number | undefined; times?: number | undefined } /** Call minions mid-script (boss summons, the Hanged Man's bats). */ | { do: "summon"; actors: ActorSpec[] } /** Set a session flag. */ | { do: "flag"; name: string; value?: boolean | number | string | undefined }

One step of an actor's script. Times are seconds at the Arcade difficulty.

AreaBuilder

interface AreaBuilder

An area being authored.

• stop(id: string, at: Vec3, look: Vec3, opts?: Partial<Omit<SectionDef, "id" | "stop" | "look">>): StopBuilder — Add a stop: at and look are world floor points; options go onto the section.
• box(model: string, at: Vec3, size: Vec3, color: string, extra?: { yaw?: number; glow?: number; walk?: boolean; solid?: boolean }): AreaBuilder — Add world-space scenery.
• room(x0: number, x1: number, z0: number, z1: number, o: { h: number; floor: string; wall: string; ceiling?: string; y?: number; open?: Array<"n" | "s" | "e" | "w">; lamps?: string; trim?: string }): AreaBuilder — A room: floor, walls and optionally a ceiling, spanning x0..x1 and z0..z1 (world).
• build(): AreaDef — The finished area.

AreaDef

interface AreaDef

An area: part of a stage with its own timer start (Time Crisis) and scenery.

• id: string — Id.
• name: string — Name for banners ('AREA 1').
• time?: number | undefined — Timer at the start of the area (default the timer's start).
• sections: SectionDef[] — The stops in order.
• scenery?: SceneryBox[] | undefined — Scenery.
• mood?: { sky?: string | undefined; fog?: string | undefined; fogEnd?: number | undefined; light?: number | undefined } | undefined — Presentation: background, fog and light.

BossPhase

interface BossPhase

A boss phase: what the boss does until its hit points fall to until (a fraction of the maximum).

• until?: number | undefined — The phase ends when hp / max falls to this (default 0: the last phase).
• scene?: string | undefined — Move the camera to this section when the phase begins (Time Crisis boss scenes, the Hanged Man's rooftop).
• at?: StopPoint | undefined — The boss's spot for the phase (stop frame of the current scene).
• script: ActorStep[] — The looping attack pattern.
• weak?: Record<string, number> | undefined — Damage multiplier per region this phase; regions not listed take none (shots are blocked). Default: the kind's regions.
• spawn?: ActorSpec[] | undefined — Minions that join at the start of the phase.
• guarded?: boolean | undefined — The boss cannot be hit while this phase's minions live.
• stun?: number | undefined — Seconds it reels at the start of the phase (unhittable, not attacking).
• extend?: number | undefined — Seconds added to the timer when the phase begins.
• banner?: string | undefined — A banner for presenters ('ACTION!', 'WEAK POINT').

Condition

type Condition = | { flag: string; is?: boolean | number | string | undefined } | { all: Condition[] } | { any: Condition[] } | { not: Condition }

A condition on session flags.

CoverDef

interface CoverDef

The full game.

• title?: string | undefined — Title.
• view: { w: number; h: number } — The screen the gun points at (logical pixels; aim and hit tests use it).
• camera?: CameraDef | undefined — Camera (field of view, aspect).
• eye?: number | undefined — Eye height above the floor (default 160).
• speed?: number | undefined — Camera travel speed between stops (default 360 units per second).
• stages: StageDef[] — Stages in order.
• kinds: ActorKind[] — Actor kinds.
• projectiles?: CoverProjectile[] | undefined — Enemy projectiles.
• gun: CoverGun — The gun.
• cover?: CoverRules | null | undefined — The cover pedal, or null for no cover (The House of the Dead).
• timer?: TimerRules | null | undefined — The area timer, or null for none.
• lives: { start: number; max?: number | undefined; immunity?: number | undefined } — Lives: at the start, most held, and seconds of immunity after a hit (default 1).
• warn?: number | undefined — Seconds a hitscan shot takes from its flash to impact at Arcade (default 0.3).
• fireWhileMoving?: boolean | undefined — Shooting allowed while walking between stops (default false).
• continues?: number | undefined — Continues (default 3; Infinity for free play).
• continueSeconds?: number | undefined — Continue countdown seconds (default 10).
• scoring?: ScoringRules | undefined — Scoring, results and endings.
• difficulty?: CoverDifficulty | undefined — Difficulty (default Arcade).
• timing?: Partial<{ intro: number; clear: number; ending: number; over: number }> | undefined — Seconds of the intro, clear, ending and game-over screens.
• startStage?: number | undefined — Starting stage index (default 0).
• seed?: number | undefined — Seed.
• step?: number | undefined — Fixed step (default 1/60).
• hiScore?: number | undefined — High score kept across sessions.
• records?: Record<string, number> | undefined — Best stage times kept across sessions (stage id to seconds).
• maxActors?: number | undefined — Resource bound: actors alive at once (default 64).

CoverDifficulty

interface CoverDifficulty

Easy / Normal / Arcade scaling. Arcade is the original tables (all 1, no extra lives).

• name: string — Preset name.
• accuracy: number — Enemy hit chance multiplier.
• windup: number — Wind-up multiplier: aiming, melee and boss attack wind-ups take this much longer.
• warn: number — Red-flash multiplier: the time between a hitting shot's flash and its impact.
• speed: number — Enemy speed multiplier (walking, projectiles).
• lives: number — Extra lives at the start.
• time: number — Timer extension multiplier.

CoverEvent

type CoverEvent = | { type: "phase"; phase: CoverPhase } | { type: "stage"; stage: number; name: string } | { type: "area"; area: string; name: string } | { type: "wait"; section: string } | { type: "action"; section: string } | { type: "section-clear"; section: string } | { type: "time-extend"; seconds: number; timer: number } | { type: "time-up" } | { type: "cover"; down: boolean } | { type: "shot"; x: number; y: number; onScreen: boolean } | { type: "reload"; via: string } | { type: "reloaded" } | { type: "dry" } | { type: "hit"; actor: string; kind: string; region: string; part: string; at: Vec3 } | { type: "impact"; at: Vec3; normal: Vec3 } | { type: "blocked"; actor: string; kind: string; at: Vec3 } | { type: "limb"; actor: string; kind: string; region: string; at: Vec3 } | { type: "kill"; actor: string; kind: string; at: Vec3; headshot: boolean; points: number } | { type: "escape"; actor: string; kind: string } | { type: "enemy-aim"; actor: string } | { type: "enemy-fire"; actor: string; hits: boolean; at: Vec3 } | { type: "ricochet"; actor: string } | { type: "throw"; actor: string; projectile: string; id: string } | { type: "projectile-shot"; id: string; kind: string; at: Vec3; points: number } | { type: "windup"; actor: string } | { type: "strike"; actor: string; hits: boolean } | { type: "player-hit"; cause: string; lives: number } | { type: "civilian-hit"; actor: string; name: string; lives: number } | { type: "rescued"; actor: string; name: string; points: number; lives: number } | { type: "civilian-lost"; actor: string; name: string } | { type: "item"; actor: string; kind: string; points: number; lives: number } | { type: "switch"; actor: string; name: string; flag: string } | { type: "life-up"; lives: number } | { type: "boss"; actor: string; kind: string; state: "appear" | "phase" | "reel" | "defeated"; phase: number } | { type: "branch"; from: string; to: string; label: string } | { type: "score"; points: number; reason: string } | { type: "stage-clear"; stage: number; time: number; record: boolean } | { type: "continue"; left: number } | { type: "game-over"; score: number; time: number } | { type: "ending"; ending: string; score: number; time: number }

Events for presenters and sound.

CoverGun

interface CoverGun

The player's gun: light-gun's definition without the view (the session supplies it).

• weapons: WeaponDef[] — Weapons (the first is the pistol).
• primary?: string | undefined — Primary weapon id.
• parts?: Record<string, PartDef> | undefined — Body parts.
• protect?: ProtectDef | undefined — Protected targets (civilians): penalties are applied as lives.
• combo?: ComboDef | undefined — Streaks.
• smoothing?: number | undefined — Crosshair smoothing (seconds; default 0).

CoverInput

interface CoverInput

Input each step. Aim is in view pixels; every field is optional.

• x?: number | undefined — Crosshair x.
• y?: number | undefined — Crosshair y.
• onScreen?: boolean | undefined — Is the gun pointed at the screen (default: the point is inside the view). False with the trigger reloads an off-screen-reload gun.
• snap?: boolean | undefined — No smoothing this step (a touch tap).
• trigger?: boolean | undefined — Trigger held.
• pedal?: boolean | undefined — Cover pedal held: out of cover, shooting (Time Crisis). Released: in cover, reloading.
• reload?: boolean | undefined — Reload button held (guns with button reloads and no cover).

CoverPhase

type CoverPhase = "attract" | "intro" | "play" | "continue" | "clear" | "ending" | "over"

Session phases.

CoverProjectile

interface CoverProjectile

An enemy projectile: rail-route's projectile kinds, launched by throw steps.

• id: string — Unique id.
• speed: number — Speed, units per second.
• radius?: number | undefined — Radius for hits on the player and by shots (default 20).
• damage?: number | undefined — Lives taken on a hit (default 1).
• shootable?: boolean | undefined — Can be shot down (default true).
• hp?: number | undefined — Hit points (default 1).
• points?: number | undefined — Points when shot down.
• look?: Look | undefined — Presentation hints.

CoverRegion

interface CoverRegion extends RegionDef

A hit region: a rail-route region plus the rules' body part.

• part?: string | undefined — Body part for light-gun statistics and headshot scoring (default the region id).
• wound?: number | undefined — With hp: damage dealt to the actor when this part is shot off (House of the Dead limbs). Default 0.

CoverRules

interface CoverRules

The cover pedal (Time Crisis).

• duck?: number | undefined — Seconds to duck fully into cover (default 0.18).
• rise?: number | undefined — Seconds to rise fully out (default 0.18).
• safe?: number | undefined — Cover fraction above which the player is safe (default 0.5).
• fire?: number | undefined — Cover fraction at or below which the gun can fire (default 0.15).
• reload?: boolean | undefined — Reload when the pedal is released (default true).
• startIn?: boolean | undefined — Start each stop in cover (default true: Time Crisis begins each fight ducked until the pedal is pressed).

CoverShooter

interface CoverShooter

A running game.

• readonly def: CoverDef — The definition.
• readonly state: CoverState — State (plain data).
• readonly rail: Rail — The current stage's rail (route, targets, projectiles).
• readonly gun: Gun — The player's gun.
• readonly stage: StageDef — The current stage.
• readonly area: AreaDef — The current area.
• readonly section: SectionDef — The current section.
• readonly difficulty: CoverDifficulty — The difficulty in use.
• sectionDef(id: string): SectionDef — A section of the current stage.
• areaOf(section: string): AreaDef — The area a section of the current stage belongs to.
• kind(id: string): ActorKind — A kind.
• projectile(id: string): CoverProjectile — A projectile kind.
• actor(id: string): ActorState | undefined — A live actor.
• stopFrame(section: string): Frame — A section's stop frame (origin on the floor at the stop, forward toward its look point, y up).
• toWorld(section: string, p: StopPoint): Vec3 — A stop-frame point in world space.
• pose(): CameraPose — The camera pose including the cover drop.
• visible(id: string): boolean — Is an actor out of cover, on the screen and in plain sight of the player (no scenery in between).
• ground(section: string, x: number, z: number): number — The ground height under a world point in a section's area (walkable scenery, else the stop's floor).
• safe(): boolean — Is the player safe from shots now (in cover or immune).
• canFire(): boolean — Can the gun fire now.
• attract(): void — Attract mode (the first stage's scene, no play).
• begin(stage?: number): void — Start a game at startStage or the given stage.
• continueGame(): boolean — Use a continue in the continue phase.
• tick(seconds: number, input?: CoverInput): void — Advance by seconds (whole fixed steps).
• step(input?: CoverInput): void — One fixed step.
• drain(): CoverEvent[] — Take events.
• setDifficulty(d: CoverDifficulty): void — Change the difficulty (enemy tables apply at once; extra lives at the next game).
• snapshot(): CoverSnapshot — Deep copy of the session, rail and gun.
• restore(s: CoverSnapshot): void — Restore a snapshot into a session built from the same definition.

CoverSnapshot

interface CoverSnapshot

A snapshot: the session's state with its rail's and gun's.

• state: CoverState — Session state.
• rail: RailState — Rail state.
• gun: GunState — Gun state.

CoverState

interface CoverState

Plain-data session state.

• phase: CoverPhase — Phase.
• phaseTime: number — Seconds in the phase.
• stage: number — Stage index.
• area: string — Current area id.
• section: string — Current section id.
• moving: boolean — Travelling between stops (WAIT).
• atStop: number — Seconds at the current stop (0 while moving).
• sectionTime: number — Seconds since the camera set off toward the current stop.
• score: number — Score.
• hiScore: number — High score.
• lives: number — Lives.
• livesMax: number — Most lives.
• immunity: number — Seconds of immunity left after a hit.
• continues: number — Continues left.
• countdown: number — Continue countdown.
• timer: number | null — Area timer (null without timer rules).
• time: { stage: number; total: number } — Seconds played this stage, and in all (Time Crisis ranks by these).
• cover: { amount: number; down: boolean } — Cover: 0 out, 1 fully ducked; down is where the pedal is taking it.
• actors: ActorState[] — Live actors.
• bullets: EnemyBullet[] — Enemy shots in flight.
• waves: Array<{ fired: boolean; skipped: boolean; ids: string[]; due: number }> — This section's waves: fired, the actors each spawned, and seconds since the trigger.
• flags: Record<string, boolean | number | string> — Session flags: rescued:<name>, lost:<name>, shot:<name>, killed:<name>, kinds' sets and rescued-all (no civilian lost so far).
• rescues: { stage: { rescued: number; lost: number; total: number }; all: { rescued: number; lost: number; total: number } } — Civilians this stage and in all.
• stats: { kills: number; headshots: number; damage: number; continues: number; escaped: number } — Statistics.
• results: Array<{ text: string; value: string }> — Lines of the stage results screen.
• ending: string — The ending reached ('' until then).
• records: Record<string, number> — Best stage times.
• banner: { text: string; t: number } | null — Current banner and seconds shown.
• steps: number — Fixed steps run.
• rng: number[] — The seeded random stream's state: four words, from the kernel's rng.snapshot(). It advances in place and is saved with the state.

DifficultyName

type DifficultyName = "easy" | "normal" | "arcade"

Built-in difficulty presets.

EnemyBullet

interface EnemyBullet

A hitscan enemy shot in flight: it lands after the red flash unless the player is in cover.

• from: string — Actor that fired it.
• t: number — Seconds until impact.
• total: number — Total flight time.

HouseOfTheDeadOptions

interface HouseOfTheDeadOptions

Options for The House of the Dead preset.

• difficulty?: CoverDifficulty | undefined — Difficulty (default Normal).
• lives?: number | undefined — Life torches at the start before the difficulty's extras (default 3).
• maxLives?: number | undefined — Most torches (default 5).
• continues?: number | undefined — Continues (default 3; Infinity for free play).
• trueEnding?: number | undefined — Score at or above which the true ending plays (default 62000, the arcade's; see the docs on chapter length).
• startStage?: number | undefined — First chapter (0-based).
• reloadMargin?: number | undefined — The edge band, as a fraction of the screen, where a shot reloads like one fired off the screen (default 0.07).
• seed?: number | undefined — Seed.
• hiScore?: number | undefined — High score.
• stages?: StageDef[] | undefined — Chapters instead of the arcade's.

Look

interface Look

Presentation hints a kind carries for a renderer (no rules read them).

• model: string — Model name the presenter builds ('soldier', 'ninja', 'zombie', 'scientist', 'crate', 'helicopter' ...).
• color?: string | undefined — Main colour (CSS).
• accent?: string | undefined — Second colour (trousers, armour).
• detail?: string | undefined — Third colour (skin, visor).
• scale?: number | undefined — Scale on the model's authored size (default 1). The kind's hit regions scale with it, so it is hit where it is drawn.
• weapon?: string | undefined — What the actor holds ('pistol', 'machine-gun', 'grenade', 'pole', 'bazooka', 'knife', 'axe', 'chainsaw', 'barrel', 'shield' ...).

NextDef

interface NextDef

A branch after a section: the first option whose condition holds, else default.

• options: Array<{ section: string; when?: Condition | undefined; label?: string | undefined }> — Options in order.
• default?: string | undefined — Fallback section (default the last option's).

Role

type Role = "enemy" | "boss" | "civilian" | "breakable" | "item" | "switch"

What part a kind plays in the rules.

SceneryBox

interface SceneryBox

Scenery: drawn by presenters, and read by the rules as the ground actors stand on and the walls and crates that stop shots and block sight.

• model?: string | undefined — Model: 'box' (default), 'crate', 'pillar', 'barrel', 'door', 'water', 'stairs', 'window', 'lamp', 'tree', 'statue' ...
• at: Vec3 — Centre of the base (world).
• size: Vec3 — Full size x (width), y (height), z (depth).
• yaw?: number | undefined — Turn about y (radians).
• color: string — Colour.
• glow?: number | undefined — Glow (emissive).
• walk?: boolean | undefined — Actors stand on it (default for floor, platform, stairs, catwalk, helipad and ledge models).
• solid?: boolean | undefined — It stops shots and blocks sight (default: every box that is not walkable, except lamps, water and trim).

ScoringRules

interface ScoringRules

Scoring, results and endings.

• rank?: "time" | "score" | undefined — Rank players by 'time' (Time Crisis: total time, lower is better) or 'score' (default 'score').
• allRescued?: number | undefined — Lives added when every civilian of a stage was rescued (The House of the Dead). Default 0.
• perContinue?: number | undefined — Points added for each continue used (The House of the Dead adds 1, which decides its third ending). Default 0.
• endings?: Array<{ id: string; min?: number | undefined; allRescued?: boolean | undefined; digit?: "zero" | "nonzero" | undefined }> | undefined — Endings by final score: the first whose rule holds.

SectionDef

interface SectionDef

A stop on the route: the camera travels here, the actors act, and it moves on when the stop is cleared.

• id: string — Unique id in the stage.
• stop: Vec3 — The camera's spot (world, on the floor; the eye is eye above it).
• look: Vec3 — The point the camera looks at once it arrives (world).
• from?: Vec3 | undefined — Where the camera comes from when the area starts here (world floor point; default 200 behind the stop).
• via?: Vec3[] | undefined — Points the camera passes through on the way (world floor points).
• speed?: number | undefined — Travel speed (default the definition's).
• waves?: WaveDef[] | undefined — What appears here.
• extend?: number | undefined — Seconds added to the timer when it is cleared.
• next?: string | NextDef | undefined — The next section (default the following one in the stage), or a branch.
• end?: boolean | undefined — The stage ends here.
• hold?: { min?: number | undefined; max?: number | undefined } | undefined — At least min seconds at the stop (a window to shoot a switch); at most max (then it moves on regardless).
• cover?: { drop?: number | undefined; side?: number | undefined } | false | undefined — Cover at this stop (with cover rules): the camera drop and sideways shift when ducked. false: no cover here.
• fireWhileMoving?: boolean | undefined — Shooting allowed while walking here (default the definition's fireWhileMoving).
• banner?: string | undefined — A banner for presenters on arrival.

Side

type Side = "below" | "above" | "left" | "right" | "behind" | "none"

Where an actor appears from or leaves to.

StageDef

interface StageDef

A stage (Time Crisis) or chapter (The House of the Dead).

• id: string — Id.
• name: string — Name ('STAGE 1', 'CHAPTER 1').
• title?: string[] | undefined — Title lines on the intro screen.
• areas: AreaDef[] — Areas in order.

StopBuilder

interface StopBuilder

A stop being authored: its section and helpers working in its frame.

• readonly def: SectionDef — The section definition (mutable until the area is built).
• world(p: Partial<StopPoint>): Vec3 — A stop-frame point in world space.
• wave(w: WaveDef): StopBuilder — Add a wave.
• prop(model: string, at: Partial<StopPoint>, size: Vec3, color: string, extra?: { yaw?: number; glow?: number; walk?: boolean; solid?: boolean }): StopBuilder — Add scenery at a stop-frame point (at is the centre of its base).
• cover(color?: string, size?: Vec3): StopBuilder — The crate the camera ducks behind (just ahead of the stop).

StopPoint

type StopPoint = Vec3

Positions are in a stop's frame: x right, y up from the ground under the point, z ahead of the camera's stop.

TimeCrisisOptions

interface TimeCrisisOptions

Options for the Time Crisis preset.

• difficulty?: CoverDifficulty | undefined — Difficulty (default Normal).
• lives?: number | undefined — Lives at the start before the difficulty's extras (default 3, the arcade's).
• continues?: number | undefined — Continues (default 3).
• areaTime?: number | undefined — Timer at the start of each area (default 60).
• magazine?: number | undefined — Bullets per magazine (default 6; Time Crisis 2 used 9).
• startStage?: number | undefined — First stage (0-based).
• seed?: number | undefined — Seed.
• records?: Record<string, number> | undefined — Best stage times kept across sessions.
• stages?: StageDef[] | undefined — Stages instead of the arcade's (customised layouts).

TimerRules

interface TimerRules

The area timer (Time Crisis).

• start?: number | undefined — Seconds at the start of an area (default 60).
• max?: number | undefined — Most seconds the timer can hold (default 60).
• whileMoving?: boolean | undefined — Runs while the camera travels between stops (default true: Time Crisis counts the WAIT walks).
• continueTime?: number | undefined — Seconds after a continue (default start).

WaveDef

interface WaveDef

A group of actors that appears at a stop.

• id?: string | undefined — Id (for after).
• at?: number | undefined — Seconds after the trigger (default 0).
• after?: string | undefined — Wait until this wave (or 'prev', the one before) has spawned and every blocking actor of it is gone.
• alive?: number | undefined — Only while at most this many blocking actors are alive.
• on?: "arrive" | "enter" | undefined — 'arrive' (default): when the camera reaches the stop; 'enter': as it sets off toward it.
• if?: Condition | undefined — Only if this holds when it is due (a switch shot, a rescue made); skipped otherwise.
• actors: ActorSpec[] — The actors.
